IPS-064

.	IPS-064...Parallel Processing Super Computer...IPS-064

IPS_064

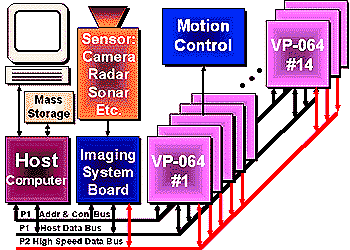

The IPS-064 is a powerful Image Processing System based on the VP-064. This highly integrated unit contains all of the functions required for state of the art, real time, Machine Vision Systems. Packaged in a 21 slot 6U VME chassis, the era of the desk top super computer has arrived.

Based on the VP-064 vector processors
Up to 16 processors can be placed in parallel to meet any throughput requirements
The High Speed Data Bus on the P2 connector can transfer data at 160 Megabytes/second.
The Feature Connector on each VP-064 front panel can control dedicated hardware.
The Imaging System Board integrates most of the functions needed for Machine Vision Systems.
Up to 4.8 Billion Floating Point Operations per second.
Up to 9.6 Billion Operations per second.
The IPS-064 is the heart of our powerful Automatic Inspection Machines
