. VP-064...Single Board Computer...VP-064
VP-064

The VP-064 is a single board Digital Signal and Data Processing computer based on the Dec Chip 21064A designed to operate in a highly parallel, multi-processor environment. This 6U VMEbus board operates as a slave only and requires a host computer capable of being a VMEbus master to provide the user operating system.


  • Host interface on the P1 connector.
  • High Speed Data Bus on the P2 connector.
  • Feature connector on the front panel.
  • Processor speeds of 233, 275 or 300 MHz.
  • Internal 128 bit local data bus.
  • Four Megabytes of high speed static RAM.
  • Up to 300 Million Floating Point Operations per second.
  • Up to 600 Million Operations per second.
  • Up to 32 processors can operate in parallel.
  • The VP-064 is the heart of our powerful Image Processing Systems

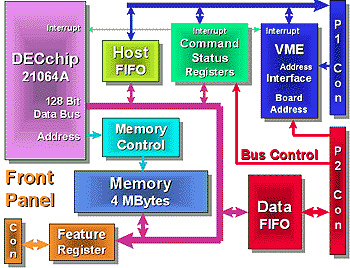

VP-064 Block Diagram
