Bushtec v2 Trailer Hitch

Assemble Hitch

Intro
Seat and Side Cover
Rear Fender
Floorboard Holder
Saddlebag Guard
Muffler Hanger
Muffler Clamps
Saddlebag Subframe Lower Bolt
Assemble Hitch
Install Ubolts
Saddlebag Subframe top Bolt
Vertical Struts
Bottom Strut Attachment
Receiver Head
Isolation Wiring Harness
Locating the Harness
Connecting the Sub Harness
Connecting the 5 to 4 converter (if needed)
Positive and Negitive Leads
Plastic Split Loom
Wiring ouput
With and without Hitch

Assemble hitch with bolts running from inside to outside, do not tighten yet

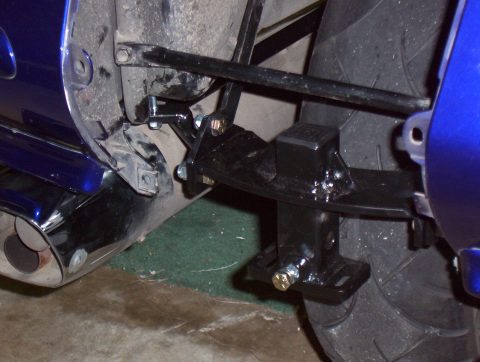

Slide hitch into place between muffler and saddlebag, cover mufflers tips with towels to avoid scratches.  (picture shows veritcal struts and ubolts already in place, however these are not supposed to be installed at this point.  I forgot to take a picture during this step)
