Bushtec v2 Trailer Hitch

Wiring ouput
Intro
Seat and Side Cover
Rear Fender
Floorboard Holder
Saddlebag Guard
Muffler Hanger
Muffler Clamps
Saddlebag Subframe Lower Bolt
Assemble Hitch
Install Ubolts
Saddlebag Subframe top Bolt
Vertical Struts
Bottom Strut Attachment
Receiver Head
Isolation Wiring Harness
Locating the Harness
Connecting the Sub Harness
Connecting the 5 to 4 converter (if needed)
Positive and Negitive Leads
Plastic Split Loom
Wiring ouput
With and without Hitch

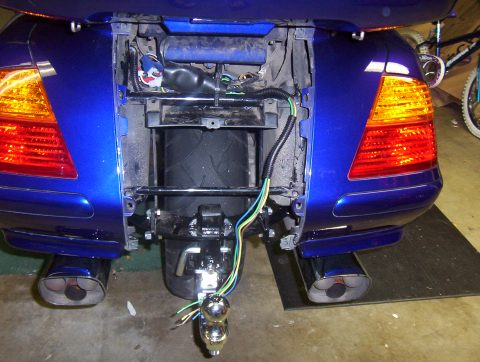

Output Wiring is routed to trailer connecton.


At this point the wiring is to be routed to the trailer connector.  I would recommend purchasing more plastic loom (conduit) to protect the wires from road spray.  I have been told that rather than leave the connector hanging while the trailer is disconnected and hitch is removed, you can stuff the connector up inside the vertical receiver shaft then reinsert the pin and cotter key to hold it in place.
