Bushtec v2 Trailer Hitch

Remove Lower Bolt on Saddlebag Subframe

Intro
Seat and Side Cover
Rear Fender
Floorboard Holder
Saddlebag Guard
Muffler Hanger
Muffler Clamps
Saddlebag Subframe Lower Bolt
Assemble Hitch
Install Ubolts
Saddlebag Subframe top Bolt
Vertical Struts
Bottom Strut Attachment
Receiver Head
Isolation Wiring Harness
Locating the Harness
Connecting the Sub Harness
Connecting the 5 to 4 converter (if needed)
Positive and Negitive Leads
Plastic Split Loom
Wiring ouput
With and without Hitch

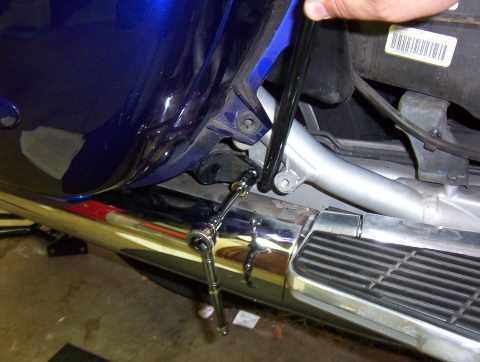

Remove the bolt one side at a time.  Instructions say to use an assistant to hold the saddlebag in place because it tends to move forward, and it is very easy to strip the aluminum threads on the frame.  I was able to push the saddlebag into place using a crowbar while tightning the bolt. (Not recommended for the faint at heart).
