Remove (5) allen head bolts attaching rear fender, do not forget the bolt directly behind the license plate

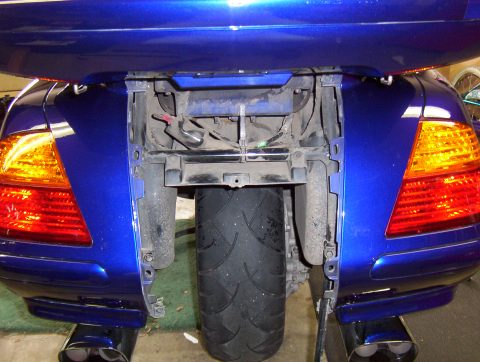

Picture of rear fender removed. Cross bar was removed to change tire, this is not required to install the hitch
