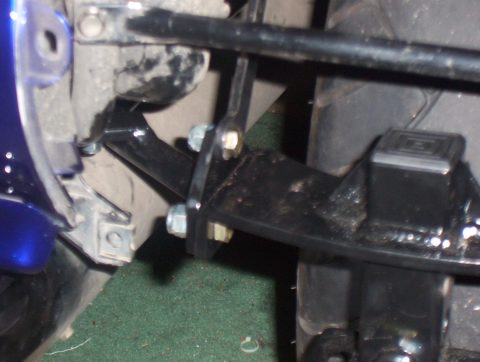

Attach the bottom end of the strut to the INSIDE of the hoop on platform with the bolts running from the inside out.

Assembly of all the hitch components is now complete.  You must tighten all components in the sequence listed in the installation instructions
