Bushtec v2 Trailer Hitch

Remove Bolt From the top Saddlebag Subframe

Intro
Seat and Side Cover
Rear Fender
Floorboard Holder
Saddlebag Guard
Muffler Hanger
Muffler Clamps
Saddlebag Subframe Lower Bolt
Assemble Hitch
Install Ubolts
Saddlebag Subframe top Bolt
Vertical Struts
Bottom Strut Attachment
Receiver Head
Isolation Wiring Harness
Locating the Harness
Connecting the Sub Harness
Connecting the 5 to 4 converter (if needed)
Positive and Negitive Leads
Plastic Split Loom
Wiring ouput
With and without Hitch

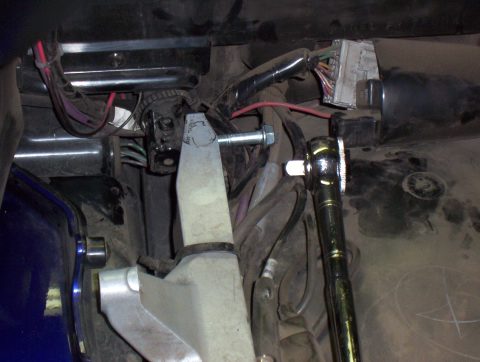

Remove the bolt from the top saddlebag subframe ONE SIDE AT A TIME! This is located under the seat at the very top rear of the frame just in front of the trunk. (For visual reference the wrench is resting on the top of the rear fender under the seat.)

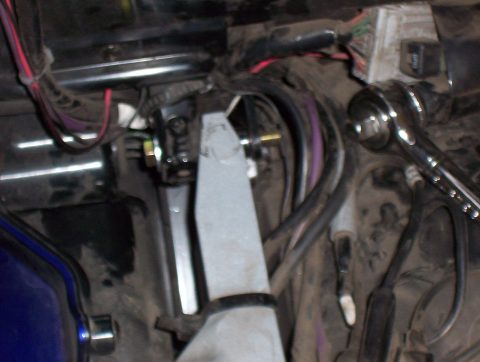

Install new bolt and 1/4" washer from outside to inside.  Be very careful not to damage the wires here.
